Winchester射频微波BNC系列连接器

发布时间：2022-01-17 17:06:18 浏览：1537

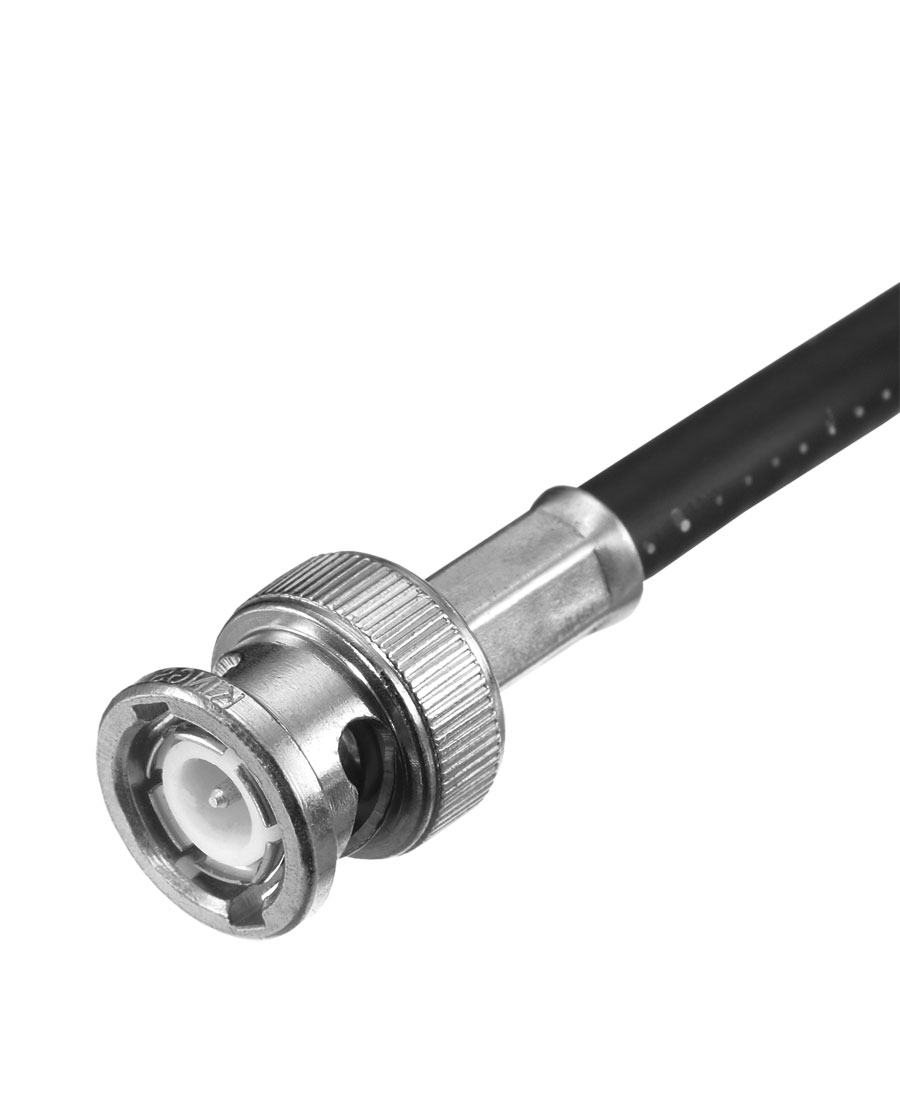

BNC连接器是用于射频终端同轴电缆的连接器。全称为Bayonet Nut Connector（刺刀螺母连接器）。BNC电缆连接器由中心销、外套管和支架组成，包括BNC连接器底座、外套管和探头。由于同轴电缆的广泛应用，BNC连接器在通信系统中也得到了广泛的应用，例如，网络设备中的E1接口通过同轴电缆与两个BNC连接器连接。还经常用于在高端显示器和音频设备中传输音频和视频信号。

Winchester是一家高可靠性连接器制造厂商，具备AS9100和AS7003航空航天质量体系认证，为全球客户提供同轴线缆、微波连接器产品。其产品被广泛应用于军用、航空航天、通信测试领域。

深圳市立维创展科技有限公司，授权代理Winchester连接器产品，欢迎咨询。

详情了解Winchester请点击：/brand/79.html

或联系我们的销售工程师：0755-83642657 QQ: 2295048674

Part #	Description	Max Frequency
TRU-12824	BNC(m) to QDS(f) Right Angle Adapter	4 GHz
TRU-11705	BNC(m) REPLACEABLE CONNECTOR	4 GHz
TRU-11706	BNC(f) REPLACEABLE CONNECTOR	4 GHz
TRU-11694	BNC(f) TO SMA(m) Adapter, Straight	4 GHz
TRU-11695	BNC(m) TO N(f) Adapter, Straight	4 GHz
TRU-11696	BNC(m) TO N(m) Adapter, Straight	4 GHz
TRU-11697	BNC(m) TO N(f) Adapter, Right Angle	4 GHz
TRU-11698	BNC(f) TO N(m) Adapter, Straight	4 GHz
TRU-11699	BNC(m) TO BNC(m) Adapter, Straight	4 GHz
TRU-11700	BNC(f) TO BNC(f) Adapter, Straight	4 GHz
TRU-11693	BNC(f) TO SMA(f) Adapter, Straight	4 GHz
TRU-11691	BNC(m) TO SMA(m) Adapter, Straight	4 GHz
TRU-11692	BNC(m) TO SMA(f) Adapter, Straight	4 GHz
SBC8281	BNC BROADCAST GRADE BELD 8281	4 GHz
361P704	BNC Vertical PCB Jack 75OHM TEF	4 GHz
361ES504EFT	E-SNAP BNC Female 50 OHM	4 GHz
351A505	Adapter, BNC Right Angle J/P	4 GHz
335R544	Adapter, BNC ISOLATED Bulkhead F/F	4 GHz
335A544	Adapter, BNC Bulkhead J/J	4 GHz
332A705	Adapter, BNC F/F BARREL 75 OHM	4 GHz
3319505	Adapter, BNC Male TO SMA FEMAL	4 GHz
3318505	Adapter, BNC Plug TO F Jack	4 GHz
3309505	Adapter, BNC Male TO SMA Male	4 GHz
326R515	BNC ISOLATED Bulkhead Jack	4 GHz
310A205FS	BNC Cable Plug (RG58 SOLID)	4 GHz
310A205F	BNC Cable Plug, RG58 (STRANDED)	4 GHz
364A2595	X-2 DUAL BNC Jacks Right Angle WHITE	4 GHz
361VH704EFT	BNC V-BITE Female-4GHZ	4 GHz
361V704ER	BNC V-BITE,75 OHM,TEFLON,GOLD PIN	4 GHz
364M795L	BNC Right Angle PC Jack-METAL LO-PROFI	4 GHz
364M595L	BNC Right Angle PC Jack, LOW PROF METAL	4 GHz
364M595	BNC Right Angle PC Jack, STD PROF METL	4 GHz
364M2795	X-2 DUAL BNC Right Angle Jacks METAL 75 OHM	4 GHz
364M2595	X-2 DUAL BNC Right Angle PCB Jacks METAL	4 GHz
364A795BL	BNC Right Angle PC Jack, 75OHM,LOWPD,WHT	4 GHz
372B006	BNC CAP & CHAIN	4 GHz
364A595BLB	BNC Right Angle PC Jack, LOW PROF BLK	4 GHz
364A595BL	BNC Right Angle PC Jack, LOW PROF WHT	4 GHz
364A595B	BNC Right Angle PC Jack, STD PROF BLK	4 GHz
364A595	BNC Right Angle PC Jack,STD PROF WHT	4 GHz
364A2795B	X-2 DUAL NC Jacks Right Angle BLK	4 GHz
361VH704ER	BNC V-BITE NON THD,4GHZ REFLOW	4 GHz
364A2795	DUAL BNC Right Angle PCB Jacks 75 OHM	4 GHz
364DI2595	DUAL BNC 50 0HM DBL-ISOL	4 GHz
364S595M	50 Ohm BNC Jack - Vertical Mount Bulkhead	4 GHz
364M2795FS	X-2 DUAL BNC METAL FULL SHLD 75 OHM	4 GHz
361V504EFT	BNC V-BITE W/Flange & THD 50 OHM	4 GHz
361V504EFT100	50 OHM V-BITE, 100 THICK PCB	4 GHz
361V504ER	BNC V-BITE For REFLOW SolderING	4 GHz
361V504ET	BNC V-BITE, 50, THREADED, TFE/GOLD	4 GHz
